As the saying goes, a beard well lathered is half shaved. To repair the iPhone 6S iPhone 7 and more iPhones, if you have best phone repair tools, then you will get twice the result with half the effort. Now, you already know how important it is to have the best phone repair tools, so, let's see what’s the best tool for repairing iPhone.



In the case of similar functions, there are many other factors to affect its good or bad. To make it easier to understand, we will show the questions of our customers and our answers, this will help you understand the products, and then buy the best repair iPhone tools for yourself. Please continue reading.



1. Customer: JC PCIE Nand Repair Machine, what is optional 2?



Vip Pro Shop Team: It have two optional, optional 1 only support iPhone 6S, iPhone 6S Plus and iPad Pro; optional 2 not only support iPhone 6S, iPhone 6S Plus and iPad Pro, but also support iPhone 7 and iPhone 7 Plus. Their shape is the same, but the built-in board is different.







2. Customer: WL PCIE, it's easy to use? Because i see many buttons.



Vip Pro Shop Team: yes, it's easy to use, it has 4 buttons, they were power button, root button, read-write button, and the voice button.



3. Customer: For circuit diagram, what's the difference between ZXW and WUXINJI?



Vip Pro Shop Team: Both of them are the circuit diagram for iPhone and iPad, and they have 1 year validity period. ZXW must have DONGE to use, and for security reasons ZXW DONGE requires users to networked computers must be able to use this software to work properly. Each dongle limit registered five times to redo the system does not affect the registration number will not be wasted. WUXINJI not only support iPhone and iPad, but also other phones, such as Samsung and XiaoMi, the most important is it doesn't need DONGE, we can remote activate the account and password. so that you can save the shipping cost and time.



4. Customer: About Nand Flash memory, if i order NAND flash for iPhone, is there anything I need to do? Such as region or wifi stuff. And how about the SN?



Vip Pro Shop Team: We can write SN on Nand flash, you just need to tell us the serial number, and the NAND flash is not related to region or wifi stuff. You can directly replace the new NAND flash which with SN.

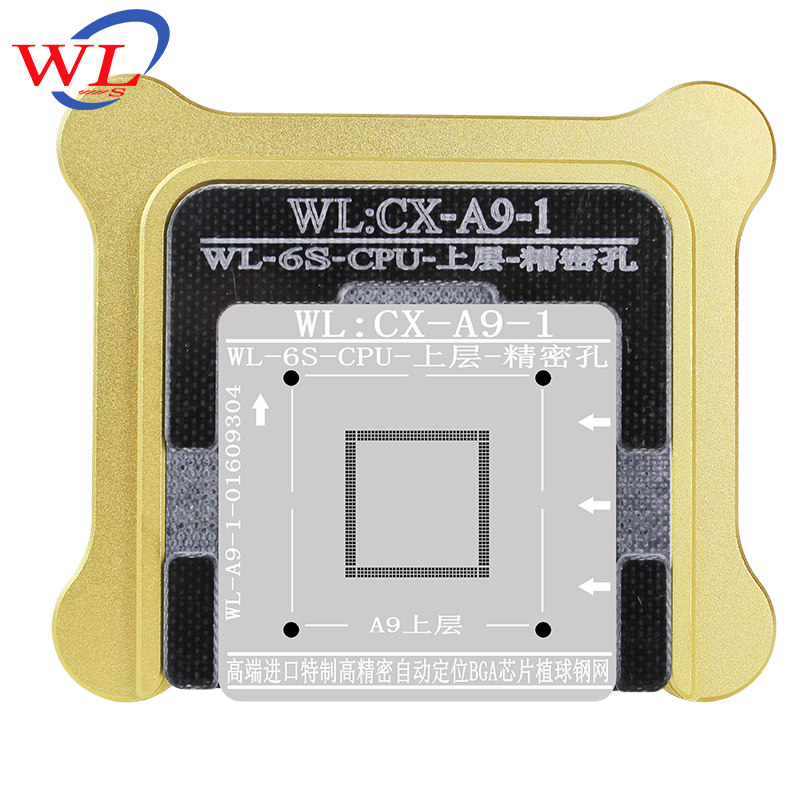

5. Customer: About BGA Reballing stencil, which one is the best for iPhone Baseband NAND



Vip Pro Shop Team: there are many types of BGA Reballing stencil in our website, if you want the it with good quality and easy to use, we recommend WL 0.1mm BGA Reballing Stencil, it has the positioning mold, and you can choose base or not, it have different models for iPhone 5-7P.







The above is the customer often asked, we hope this can help you learn to select the best iPhone repair tools. More information, please keep your eyes on Vip Pro Shop Team.

Microscope is a device which used to see objects that are too small to be seen by your eyes. Through the microscope, you can observed small objects and structures. Even though there is a saying that the human eyes has 576 million pixels, but still not available in some area, such as repair phone industry.

There are many tiny chips on the phone, when you want to observe it or repair it, you must to use a microscope.Now, there are different types of microscope, and they have the diferent fuctions.Toady we are going to introduce three kinds of microscopes and their use in phone repair.

1. Stereo Zoom Microscope : it can use for mobile phone motherboard Inspection and Repair working, Super widefield optical system will offer crystal clear images of phone motherboard, Stereo Zoom microscope will help phone service engineer get high resolution and good depth within a broad field of view.





2. HD Digital Electronic Microscope : it can use for Broken Phone Circuit Board Repair, VAG / HDMI Electronics Microscope for Phone Circuit Board Soldering, HD Digital Electronic Microscope for phone Circuit Board Repair.



3. Digital USB microscope : it can use for Phone Logic Board Repair and it allows you to see the smallest details in high resolution directly on your computer screen,spot the slightest imperfection on your stamp collection, examine hairs, fibers, crystals or use the microscope to teach science to your kids in a fun and exciting way.





Each device has its own characteristics, just choose what you want, that is best for you.



As necessary communication equipment, smartphones are universal in daily life. Therefore, the possibility of fault caused is much more. There are plenty of factors for smartphone fault, so many parts are easy to get damaged. Once smartphones get trouble, you need to repair in time. How to find out the fault on your smartphone? Here we offer 6 method to realize you an efficient solution!













• Observation Method



It is the easiest and fastest way to judge smartphone fault. Repairman can observe directly on housing and circuit board to find some faults.



First, try to observe on outer smartphone, for instance cracked screen, damaged body, port etc. Mainly check carefully whether the outer construction is good as normal one, whether the front frame matches back frame perfectly, whether it's soiled on touch screen, etc. Many repairmen often ignore the process in actual operation. Anyway, you'b better to have a try, it may help you to find some traces.



Second, if there are no obvious faults outside, you can move to the next step to observe the inner parts of smartphones. You can start from 3 parts including PCB, connecting lead and electronic components. Judge from some phenomenon such as whether there is a fracture in the screen line, whether there are burning components, false welding on motherboard, etc.







• Smelling Method



It is another method by distinguish whether there is burning or unpleasant smell, which will help you find fault trace rapidly. If inner components or parts are burned because of a short circuit, a kind of terrible burning smell, repairmen may judge the possible cause by this method.





• Software Restore Method



Software repair is smartphone maintenance method for faulty software, it should work with computer or programmer to restore software data in smartphones.



So far popular software repair method are including phone non-disassembling and disassembling repair.



The first one is connecting smartphone USB port to computer by engineering cable, writing the software data saved in computers into relative modules of smartphone. It is very easy to operate.

The second one is by disassemling faulty module from circuit board while putting it in programmer, then connect computer with programmer, re-write data on computer and put the module back to smartphone. This method is a little bit difficult to operate, technician should be professional for soldering operation.







• Multimeter Measuring Method



Multimeter measuring is an universal method, it mainly measure the current, voltage, resistance or capacitance of smartphone parts, then compare the actual values with standard values. Thus you can locate the possible scale for faulty components. of course you need to measure the specific components by multimeter again to ensure the final fault point.







• Oscilloscope Measuring Method



It is one of the most important method, technician mainly observe the signal wareform for circuit board, which will be compared with standard wareform by oscilloscope to analyse and judge the faulty parts.







• Spectrum Measuring Method



Spectrum analyzer is the most scientific and accurate method for smartphone RF circuit parts, it mainly observe relative signal spectrum by the analyzer and then compare with standard information.

For instance, if you want to test the RX signal of RF circuit parts, it's very convenient to distinguish if it work well by analyzing signal spectrum on display.







Good luck to your cell phone maintenance, hope our information will help you! Read more at http://www.vipprogrammer.com

Cell phone disassembly is an essential process for repair technician, you need to be gentle and careful in the operation. Here is the guide for how to tear down iPhone 7 in cell phone maintenance. It is not very difficult if you have complete repair toolkit to follow the steps.







Step 1



Prepare iPhone 7 device and necessary opening toolkit.

Eject the Nano-SIM card tray, remove the two bottom 3.4 mm Pentalobe screws.



Step 2



Use the triangle opening tool slice through the sticky adhesive and carefully separate the iPhone 7 display assembly on the rear case.

Don' t remove it entirely as the display assembly is still connected to the iPhone by cables along the middle-right side.

Remove the following 4 Tri-Point screws securing the bracket that covers the battery connector and two of the display cables.

Remove the following 2 Phillips screws that secure the bracket covering the upper component display cable.

Disconnect the cable and free the iPhone 7 display assembly from the phone.



Step 3



Remove the following 6 Phillips screws, followed by the metal clip they secure in place. Easily extract the stereo-enabling speaker.

Remove the tangled up 7-megapixel iPhone 7 Front-Facing Camera Cable Assembly by tweezers. It includes the front-facing camera, microphone, proximity sensor and ambient light sensor.



Step 4



Remove the following 4 Tri-Point screws and then the metal bracket.

iPhone 7 Plus home button disassembly is simple, with only light adhesive on the cable and no delicate gasket.



Step 5



Remove the following 6 Tri-Point screws.

Release the adhesive with spudger from beneath the bottom of the LCD shield plate.



Step 6



Remove the following 2 Phillips screws and then lift it out of the iPhone 7 rear case.

Disconnect the Taptic Engine from the logic board.

Remove the following 3 Phillips screws and tweeze out the iPhone 7 Taptic Engine. This sleek engine uses haptic feedback to simulate the push of a button.



Step 7



Positioning the two peel-to-remove adhesive tabs at the bottom of the battery. Grab the first tab and try to keep the adhesive strip flat and wide.

Remove each strip on the iPhone 7. The strips will stretch to many times the length of the battery- keep pulling until they come out from between the battery and the rear case.



Step 8



Remove the following 2 Phillips screws and the protective metal cover.

Disconnect the 12-megapixel iPhone 7 rear-facing camera and pry it out of the chassis.



Step 9



Remove the following 4 Phillips screws and pluck out the top left Wi-Fi antenna.

Attack a bevy of Phillips, Tri-Point, and standoff screws, and dispatch of a few connectors before digging the iPhone 7 logic board out of the rear case

After taking care of the last 2 connectors, carefully uproot the iPhone 7 logic board out of the rear case.



Step 10



Remove the following 4 Phillips screws and eradicate the iPhone 7 loudspeaker.

Remove the following 5 Phillips screws and separate the microphones from the speaker grille plugs with tweezers.



Step 11



Remove the following 2 Phillips screws. Extract the antenna flex cable, which acts as a bridge between antenna pathways.

Remove the standoff screw, and then the bracket.

Remove the following 5 Phillips screws.

A cable array that contains the power and volume button switches, LED flash, a microphone, and the ring / silent switch, it is the last component to surrender.

The iPhone 7 power and volume buttons are nuzzled securely in the rear case, defying conventional removal.

To disassemble your iPhone 7, you need to have basic repair skills so that more damage will be avoided.

More iPhone maintenance skills and plenty of repair tools read at www.vipprogrammer.com

How to fix an iPhone touch screen that's not working, iPhone 7 touch screen Unresponsive, no matter how hard they poke or how many times they restart. In this article, vipprog explains why the touch screen on your iPhone 7 is not working, how to fix the problems by the iphone repair tools, and recommend some great repair options, if it comes to that.



1. iPhone Disassembling

Turn on the phone, the touch function is incapacitated. Remove charging port screws and detach the display assembly. Disconnect LCD Screen flex cables and remove iphone logic board screws. Then take out the logic board.





2. Malfunction Diagnosing

Test resistance of the display assembly connector with digital multimeter. Resistance of pin 10 displays abnormal value (470 under normal circumstances).





Roll out the maintenance drawing for reference.







Pin 10 worked as AP_TO _TOUCH _MAMBA _CONN _L signal. The signal was connected with CPU AT2 pin via inductor FL3904.





Circuit between pin 10 and inductor FL3904 displays normally.





Test resistance from inductor FL3904 to CPU, the device displays normal value. Then we can draw the conclusion that inductor FL3904 was damaged.





3. Malfunction Repairing

Take down the inductor with soldering iron.

http://blog.rewatechnology.com/wp-content/uploads/2017/05/7.jpg" />





Solder tins on the copper wire. After that, connect the two bonding pads of the inductor with the iphone chip conductor wire. Then cut off the rest of it with a sculpture knife.





Test pin 10 resistance with digital multimeter again, this time we get a normal value, which means the problem has been fixed.





4. Function Testing

Clean the bonding pad with PCB Cleaning Brush.





Assemble the phone and test. Touch function is back to normal.



2016 ACT PLUS IMEI CHIP Test fixture for iphone 4S/5/5C/5/6/6P/SE/6S/6SP, iphone eeprom ic repair All-in-One machine, iphone restore error -1,3,6,16,47,48,1669 repair tool.  from viipprogrammer.com

Main Function: Erasing / Reading / Re-writing / opening CHIP (Baseband eeprom IC)data, check CHIP good / bad status, erase & format chip, repair the iphone restore error -1,3,6,16,47,48,1669

JMD Handy baby machine is the Car remote key chip Copy machine for 4D/46/48 /G Chips, New features and Latest Updates on V7.0 JMD Handy baby, and 100% original tested working V7.0 JMD Handy baby Transponder copying machine programmer, how to update your JMD Handy baby machine, what's is the added new features on V7.0 JMD Handy baby programmer. from vipprogrammer.com

Free download V7.0 JMD Handy baby software

https://mega.nz/#!Kp9j1J5R!ixMIzZIKmLqFYhRbLQzQj0w5_zH_LVkf6YoO6Wst0LQ

Handy Baby Version 7.0.0 has released, you can download the latest client, and upgrade your device to the latest version, the new system version fix some bugs and add new functions

how update your old Handy Baby to Version 7.0.0

http://www.slideshare.net/obd2motor/online-upgrade-guide-of-handy-baby-cbay-transponder-programmer

JMD HandyBaby v7.0 New functions:

1.Simulating as the transponder (4D)

2.Read more type of transponder

3.GM ID46 generate

4.Dump to key(translation has not finish, so English software is empty now)

v7.0 Handy Baby Full function list: (update 09/07/2016)

1.Transponders copy : 46/4D /4C/64/13/12/11/33/42(online)

2.ID48 copy: vice ID48(changeable uid), delphi immo box, part of VW, Fiat, Audi, Volvo, Honda etc.

3.DST80 copy: Toyota 72G(online), Ford 4D83(online), Hunydai/Kia 4D70

4.Chip transfer: 4D60/60+ transfer to 4D63/83 cars

5.Transponder simulation

6.Read/write: 46/48/4D/4D+/8A

7.Transponders reading: 11/12/13/33/40/41/42/44/46/47/48 /60/60+/61/62/63/63+/64/65/66/67/68/69/6A/6B/70/71/ 72G/73/8A/49 and smart keys etc.

8.Chip generate: 60/61/62/63/64/65/67/68/6A/6B/71/60+/ 63+/72G etc.

9.Chip generate: different format data of ID46

10.Frequency and modulation mode test(remote)

11.ECU signal/ data stream of ID46/ key type (all lost) detect

PRO300 machine have updated to latest V1.1288 version, how to update pro300 by latest NK.bin file, our customer will free get updates file by email box, and make many improvements and added new features on V1.1288 NAVIPLUS PRO300 Apple NAND Flash programmer.

V1.1288 PRO300 NAND Programmer (English) new update feature:

* ADD: Support iphone 5S NAND

* ADD: iphone 5s underlying data change, and when change the NAND Flash on iphone 5S, fingerprints function is also working well.

* bug fixes:

upgrade guide for NAVIPLUS PRO3000

https://drive.google.com/file/d/0BzMEvK0bAD0eR29pcl9VVlRWbFE/view?usp=sharing

how to expand NAND storage on iPhone 6s / 6s plus, Expand iPhone 6s / 6s plus Memory from 16GB to 128GB /256G by Changing before NAND, we will share the ways to expand iPhone 66 memory from 16GB to 128GB. With the similar way, you can do iPhone 6 plus / 5s / 5 / 4s. And remove 64bit NAND iPad iCloud (mini2/3/4,air/air 2). If you want to unlock iPad mini 1, iPad 2/3/4, you need iPad 2 3 4 icloud unlock tool.

MiJing PCIE NAND Repair Tool, Support Nand Flash re-programming on iPhone 6S / 6SP / 5SE and iPad Pro model, SN change tool, iPhone 6S / 6SP / 5SE and iPad Pro nand flash memory storage upgrade, Modify Nand underlying data, absolute modify the WIFI address data information. From vipprogrammer.com

Main function:

Support Nand Flash Memory Capacity expansion (upgrade iphone memory Storage)

Support iphone 6S re-install the iOS system

Support data reading and writing on 256G Nand (hard-disk)

Support WIFI address change, modify the WIFI data information replace (independently)

Don't need Boot Nand Flash, easy to use

When the Nand direction is error, automatic alarm, don't damged machine

China OEM R270 plus BDM Programmer is good to read, write and erase M35080 Series (35080/35080-V6/35080-VP/D80 D0WQ/D160/35160, etc). here, vipprogrammer.com will show you the user operation guide: how to read & write & erase BMW M35080 chip by R270 plus programmer

Select correct MCU “D80 D0WQ/”

Select IC Type “D80 D0WQ/” and DAS Odometer Type “Type 1”. Click “Read” button

It will show “Decode”, just wait a while.

R270 BDM Programmer is reading D80 D0WQ

Save dump file

Now you can see the odometer, click “Erase Odometer” button. And it will show “Decode”, also wait a while.

Save bin file, Erase EEPROM

Write success

Now you can see the odometer is successfully erased by R270+ Programmer.

If you fail to use R270 to work with M35080 EEPROM, firstly you have to remove M35080 chip and then plug it into the IC socket, this IC socket is designed for M35080 EEPROM. If your programmer can read but not write, best option is get another chip, load data and then write.
